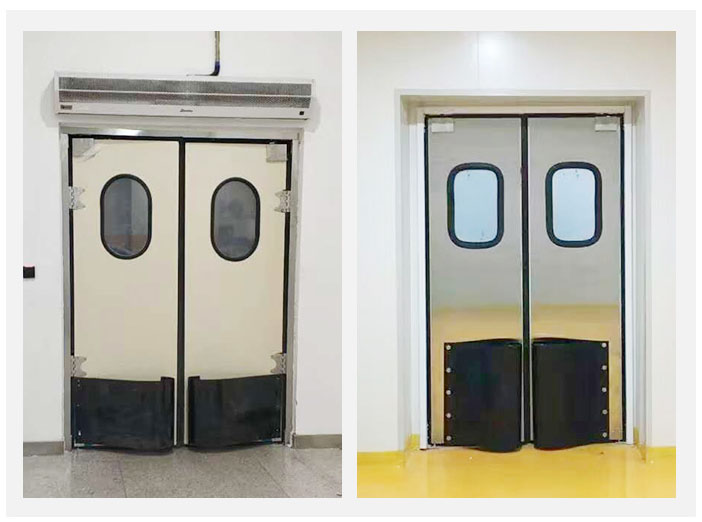

Traffic door

Traffic door is widely used in the industrial workshop. It can meet the requirements of various working conditions, can be water-based and easy to rinse, and is widely used in food processing, pharmaceutical, retail, postal, supermarket, warehouse .
Availability:
Quantity:

Technical data:

Door Leaf

Thickness:20 or 40mm ,1.0MM 304 stainless steel or powder coated G.I. steel

Filling material:50kg/m³ polyurethane

Seal:All-round EPDM weather seal rubber

Door Frame:

Sheet thickness: 1.2mm
Seal:All-round EPDM weather seal rubber

Hinge Special 180° heavy duty hinge

Structure diagram:

traffic door diagram

Advantages:

It has the characteristics of firmness, impact resistance and long service life. It can withstand the direct impact type of forklifts, hydraulic carts, small carts, etc., enabling people and goods to pass faster and improve work efficiency.

Material:Powder coated galvanized steel or 304 stainless steel.

traffic-3

1.Size

Single Door:  600 ≤ width≤ 1200mm, 1800 ≤ height ≤ 3000mm

Double Door:  1200 ≤ width ≤ 3000mm, 1800 ≤ height ≤ 3000mm

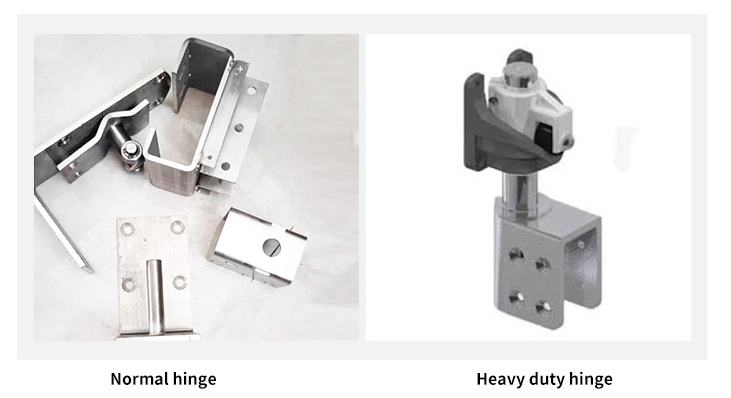

2.Auto-closing hinges:The hinge adopts the hoisting process, the eccentric shaft design, the opening and closing ability is strong, and the work efficiency is improved.

 traffic-10

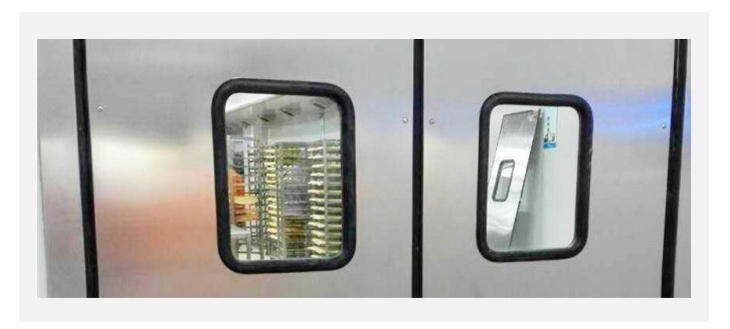

3.Safety windowMade from double layer PMMA material. Staff can see the opposite side through it, and avoid crashing accidents when pushing the door open. Even if it got broken, it will not break into pieces like regular glass. This avoids harming human or polluting the environment.

traffic-4

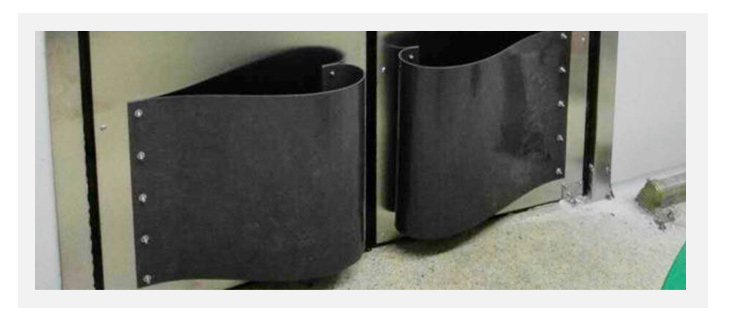

4.Anti-collision rubber plate: Arc shape with very good structure elasticity. It can endure frequent collisions.

traffic-11
