Normal PVC Rapid Roller Door

High efficiency intelligence and safety make it widely used in food, chemical, textile, electronics, supermarket, cold storage, logistics, warehousing and other production efficiency, dust-free and high temperature level requirements.
Availability:
Quantity:
  • YUOU-Servo

  • YUOU

Technical Data

Max dimension: 6000mm wide*6000mm high
Max opening Speed: 2.5m/s
Max closing speed: 1.0m/s
Wind resistance: Beaufort scale 10 (25m/s)
Power supply: 1-phase 220±10%V,50/60HZ
Protection level of electric: IP55
Available colors of fabric: Yellow, Blue, Red, Grey, White, Clear

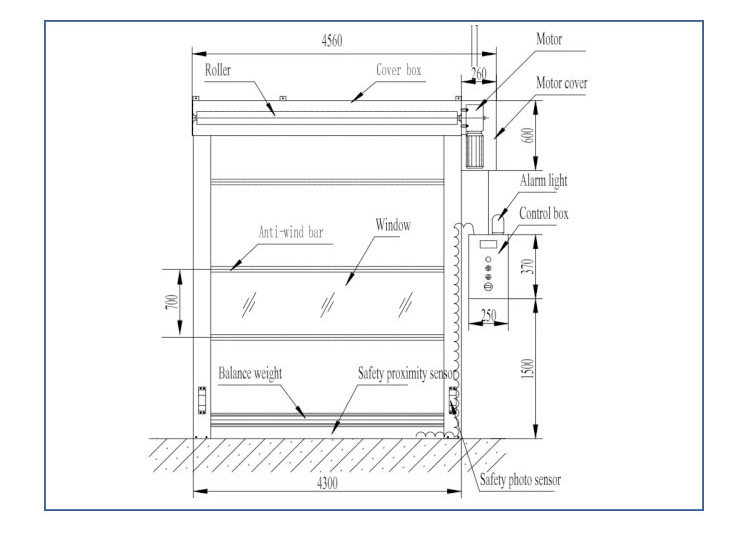

1.Structure diagram:the head space is small, structure is simple, and very easy to install.Normal-2

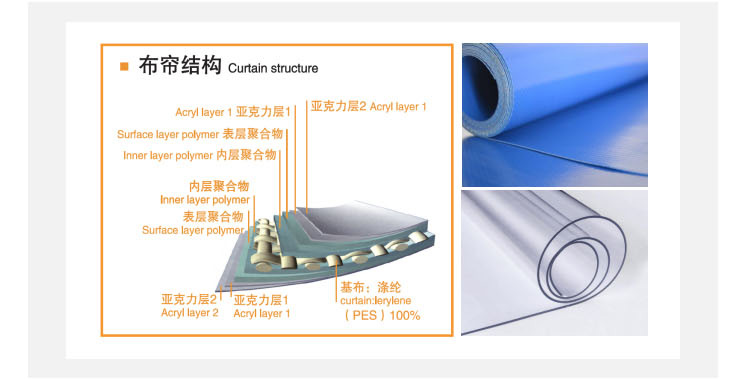

2.PVC fabric:PVC environmentally friendly material, safe, durable, with multiple colors to choose,Standard thickness:1.0mm(950g/sqm).Other thickness available:1.2mm-1.5mm;Flameresistant material.

Normal-3

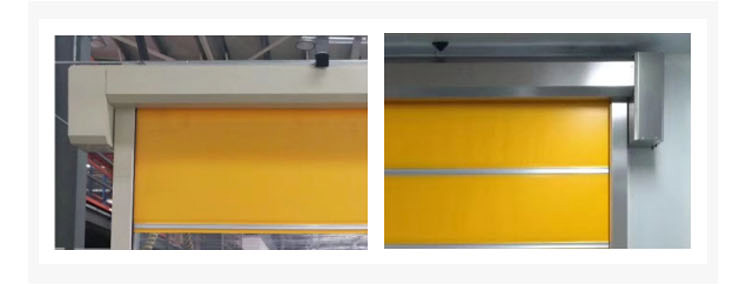

3.Frame and Rails:Including two guide rails,one top cover box and motor cover.Galvanized steel or stainless steel.Thiickness:1.5mm guide rail;1.0mm cover box.

Normal-4

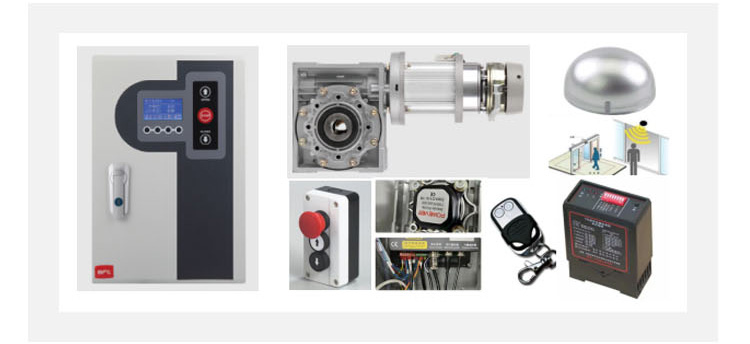

4. Motor and controller:Italy servo technology motor and controller with English interface.Absolute encoder+inbuilt incremental encoder,double encoder ensure low failure rate.

Normal-5

4. Safety devices:

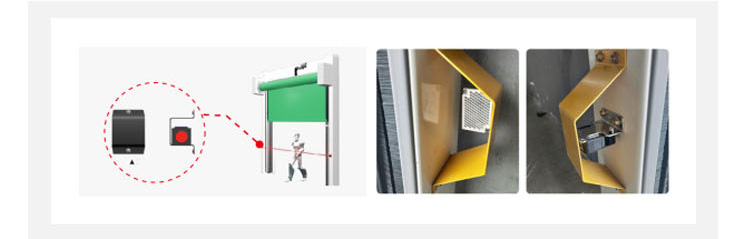

A.Photocell sensor:When there is a human or vehicle under the door,the door will stop closing and get up automatically.This will avoid accident collisions.

Normal-7

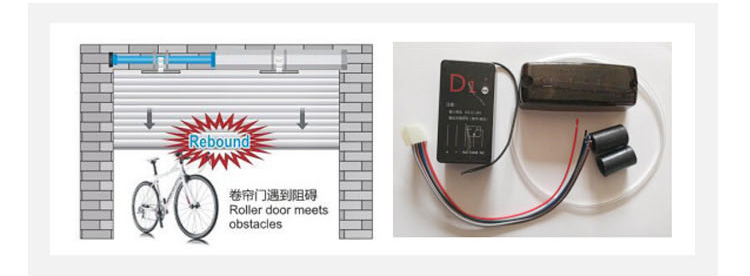

B.Safety bottom edge:When the bottom bar of the door touches something,it will stop closing immediately and get up automatically.

Normal-8

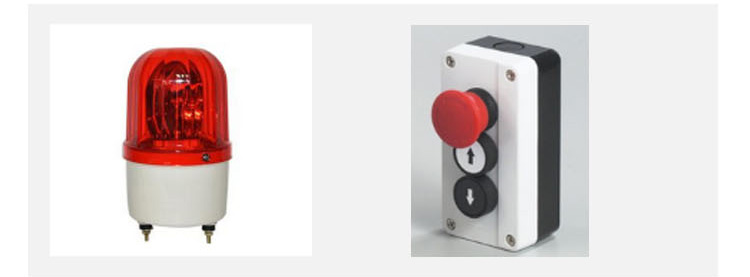

C.Alarm light and enmergency buttons.

Normal-9

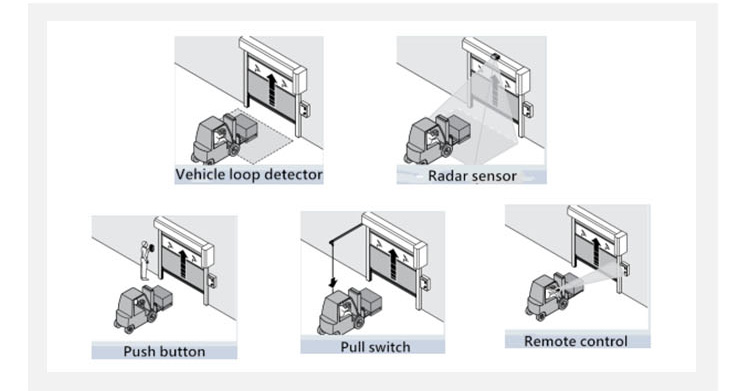

5. Operation methods:

Normal-10

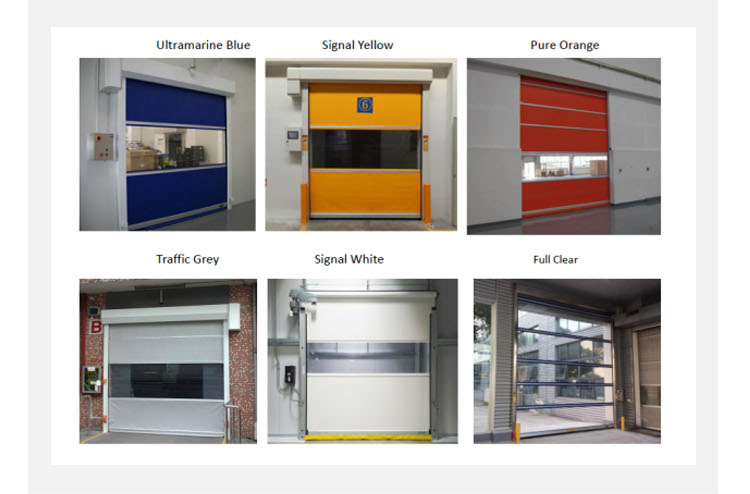

6. Commonly used colors:(Other color can be customized.)

Normal-6
