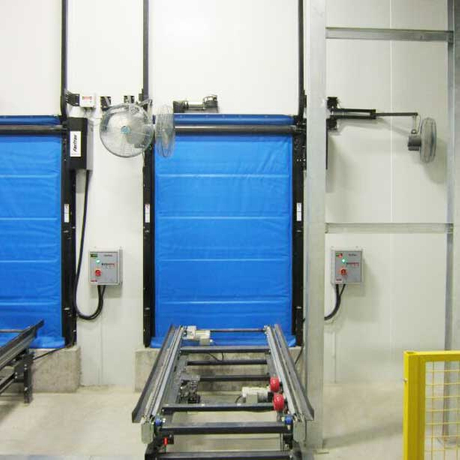

Cold Storage Rapid Door
Product Description
Technical Data：
| Max dimension: | 3000mm wide*4.5000mm high |
| Max opening Speed: | 1.6m/s |
| Max closing speed: | 1.6m/s |
| Wind resistance: | Beaufort scale 12 (35m/s) |
| Power supply: | 1-phase 220±10%V,50/60HZ,or 3-phase 380V±10%V,50/60HZ |
| Protection level of electric: | IP55 |
| Control system： | Servo type |
| Driving system： | Servo motor |
| Thermal insulation factor: | ≤0.69W/（㎡•K） |
| K-VALUE | 0.4W/M2K |
| Sound insulation factor: | R=25dB |
| Available colors of slat: | Grey, Blue, White, Aluminum, Golden |
1.Structure diagram：
2.Insulated PVC Sandwich Fabric:Insulated sandwich fabric.Double skin is 0.9mm PVC fabric,and inside is filled with high-density insulating rock wool.Total thickness:20mm.
3.Anti-freezing Heating Device:All-round heating wire belt is used to avoid freezing of door structure.This device could avoid damage of door fabric and driving system when the door is frozen steadily.
4.Self-repairing and Air-tight Design :The soft curtain anti-collision cold storage door has an Self-repairing structure design. After accidental impact, the curtain is released from the track,which saves maintenance cost and personnel input for the cold storage user, so it is used for frequent access.
5.lifting method:The freezer high speed door lifting method has scroll lifting and horizontal lifting. After rigorous experimental data, the reel type and horizontal lifting are ideal ways to upgrade.
6. Motor and controller：Italy servo technology motor and controller with English interface.Absolute encoder+inbuilt incremental encoder,double encoder ensure low failure rate.
7. Safety devices：
A.Photocell sensor:When there is a human or vehicle under the door,the door will stop closing and get up automatically.This will avoid accident collisions.
B.Safety bottom edge：When the bottom bar of the door touches something,it will stop closing immediately and get up automatically.
C.Alarm light and enmergency buttons.
8. Operation methods：
9. Commonly used colors:(Other color can be customized.)
