YUOU-Sliding hangar
Technical Data:
Applicable door opening | W100m*H22m |
Reserved size on the upper edge of the hole | ≥1000 |
Reserved size on the side of the hole | ≥door leaf width+500 |
Working voltage frequency | 380V/50HZ |
Motor Power | n×1.5-3W(n is the number of the door leafs) |
Running speed | ~0.17m/s |
Door thickness | 200-530 |
Adapt to temperature | -40°C~50°C |
Wind pressure resistance | 650N/m² |
Sound insulation | 23db |
K | K≤0.8W.m².K |

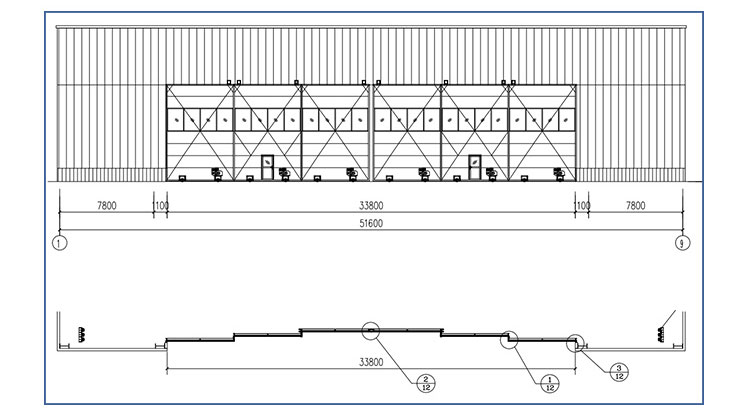

Structure diagram:
1.Door panel:
A.Corrugated steel plate:0.5-0.8mm,powder coated galvanized steel,good anti corrosive performance and easy to install.
B.PU sandwich panel:0.4mm double layer painted steel.Filled with environmental friendly PU foam.Very good heat preservation and noise insulation.
C.Polycarbonate panel:Very good daylighting performance and better thermal insulation performance.

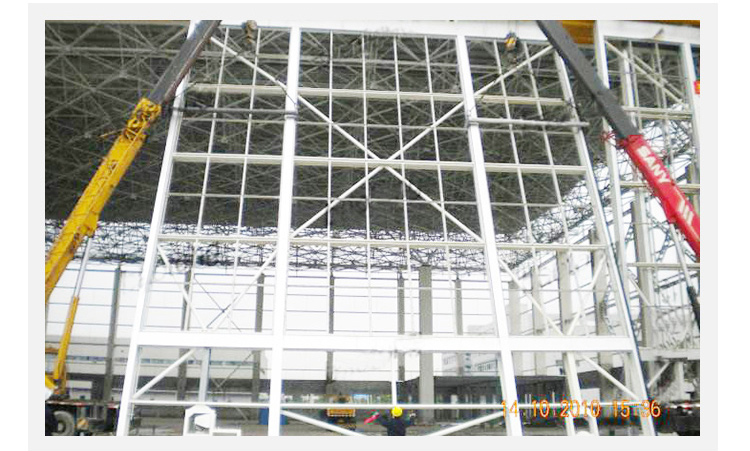

2.Steel Structure:
A.Professional mechanical analysis of steel structure.
B.All materials are hot galvanized.Excellent corrosion resistance.
C.All joints shall be fully welded or bolted with high strength.

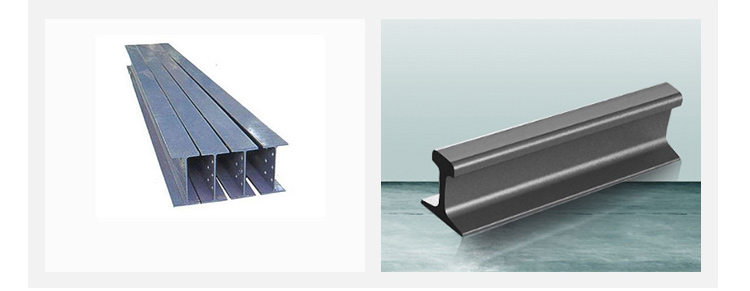

3.Guide rails:Ground rail,18-24kg .Top guide rail,150mm-250mm H-Shaped steel.

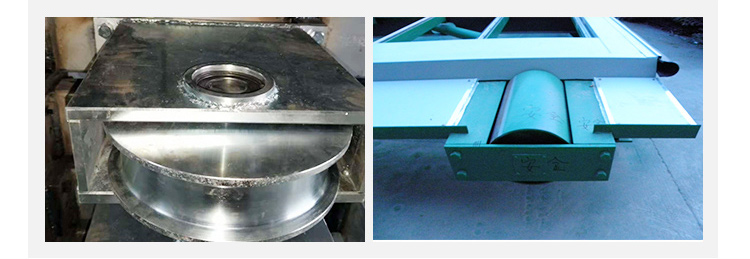

4.Wheels.Bottom bearing wheel:Conical design,wheels will adjust the position automatically.Top guide rail:Special cylindrical design,the wheels could move up and down to adapt the possible deformation of the door.

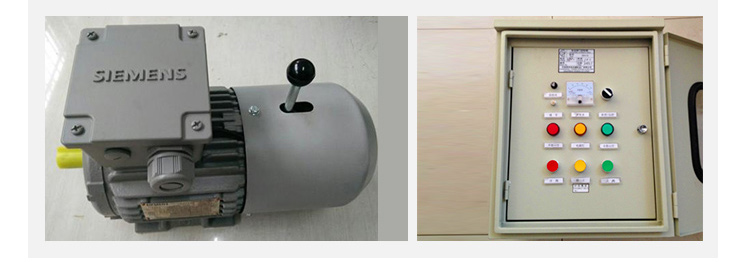

5.Motor and controller:"SIEMENS" brand motor with clutch.Variable frequency drive system to realize slow start and stop.

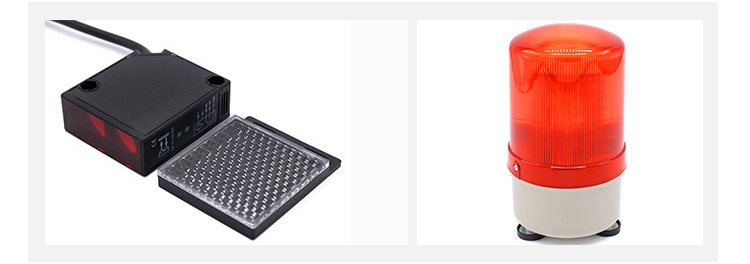

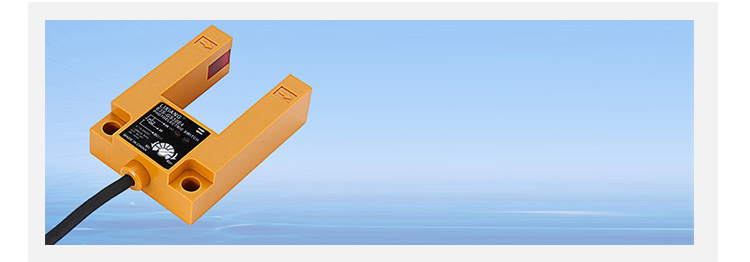

6.Safety photo sensor and alarm light:
Video display
Technical Data:
Applicable door opening | W100m*H22m |
Reserved size on the upper edge of the hole | ≥1000 |
Reserved size on the side of the hole | ≥door leaf width+500 |
Working voltage frequency | 380V/50HZ |
Motor Power | n×1.5-3W(n is the number of the door leafs) |
Running speed | ~0.17m/s |
Door thickness | 200-530 |
Adapt to temperature | -40°C~50°C |
Wind pressure resistance | 650N/m² |
Sound insulation | 23db |
K | K≤0.8W.m².K |
Structure diagram:
1.Door panel:
A.Corrugated steel plate:0.5-0.8mm,powder coated galvanized steel,good anti corrosive performance and easy to install.
B.PU sandwich panel:0.4mm double layer painted steel.Filled with environmental friendly PU foam.Very good heat preservation and noise insulation.
C.Polycarbonate panel:Very good daylighting performance and better thermal insulation performance.
2.Steel Structure:
A.Professional mechanical analysis of steel structure.
B.All materials are hot galvanized.Excellent corrosion resistance.
C.All joints shall be fully welded or bolted with high strength.
3.Guide rails:Ground rail,18-24kg .Top guide rail,150mm-250mm H-Shaped steel.
4.Wheels.Bottom bearing wheel:Conical design,wheels will adjust the position automatically.Top guide rail:Special cylindrical design,the wheels could move up and down to adapt the possible deformation of the door.
5.Motor and controller:"SIEMENS" brand motor with clutch.Variable frequency drive system to realize slow start and stop.
6.Safety photo sensor and alarm light:
